Description

Introduction to stepper driver

DM series products of digital digital driver adopt 32-bit DSP processor, which can drive 42-130 full series of two-phase and three-phase stepper motors. For different motors, the optimal control parameters can be automatically generated to maximize the performance of the motor, so that the motor can achieve low vibration, low heat generation and stable low-speed operation.

2Phase motor driver performance

• Medium and high speed torque compensation;
• Current vector control, high efficiency;
• Built-in acceleration and deceleration control to improve the smoothness of start and stop;
• Single and double pulse control mode can be selected;
• Motor running position memory;
• Input signal differential optocoupler isolation, compatible with 5-24V;
• Customizable microstep;
• Overcurrent protection, overvoltage protection;
• Automatic detection, flexible selection of pulse edge counting method;
• Green light means running, red light means protection or offline.

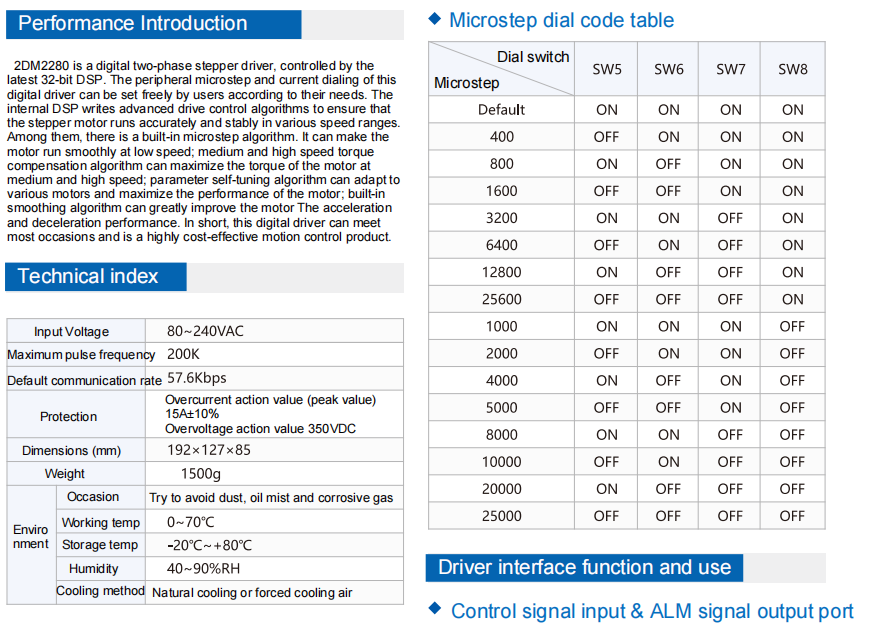

2Phase motor driver 2DM2280 Specification

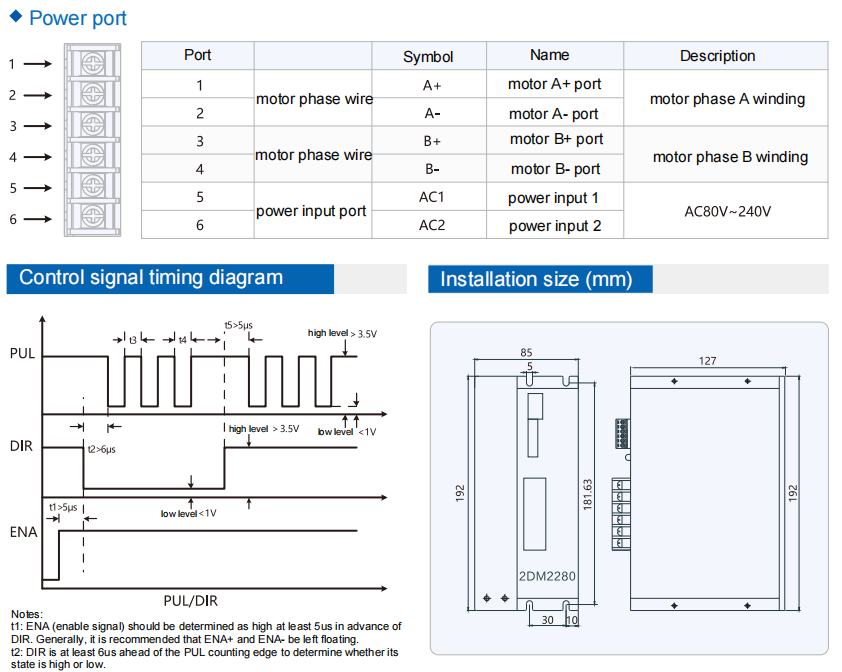

2Phase motor driver 2DM2280  Mechanical Dimens

2DM2280 (Please click)

A motor driver, also known as a digital driver or stepper motor controller, is an electronic device or module used to control the motion of a digital driver. Stepper motors are commonly used in various applications that require precise and controlled rotational or linear motion, such as 3D printers, CNC machines, robotics, and automated systems. The stepper driver plays a crucial role in converting electrical signals into precise mechanical movements by controlling the current supplied to the motor winding.

When selecting a digital driver for a particular application, it’s essential to consider factors such as motor voltage, current requirements, micro stepper capability, and communication interface compatibility. The choice of driver can significantly impact the overall performance and precision of the stepper motor system.
