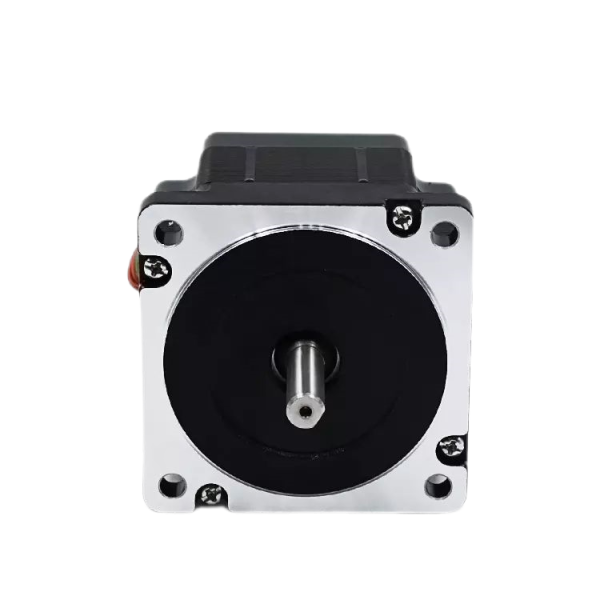

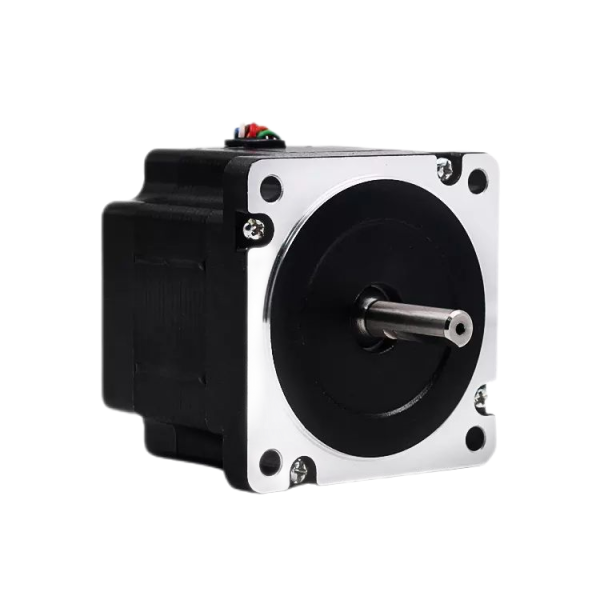

cnc stepper motor 2phase 86J1865-450
86J1865-450 high torque 2-phase nama 34 cnc stepper motor nema34 3.5N.m 3D printer stepper motor
- Description
- Inquiry
Description
Introduction to cnc stepper motor
A stepper motor is an actuator that converts electrical pulses into angular displacement. In layman’s terms: when the stepper driver receives a pulse signal, it drives the stepper motor to rotate a fixed angle (and step angle) in the set direction. You can control the angular displacement by controlling the number of pulses, so as to achieve the purpose of accurate positioning; at the same time, you can control the speed and acceleration of the motor rotation by controlling the pulse frequency, so as to achieve the purpose of speed regulation.
2Phase Nema34 stepper motor performance
- High-quality materials
- High reliability and precise positioning
- Excellent torque, high precision
- Low noise, low heat and low vibration
- Precise positioning, rotor, small air gap
2Phase Nema34 cnc stepper motor 86J1865-450 Specification
| Model | Phase | Length of Motor | Diameter of shaft | Rated current | Holding torque | Rotor Inertia | lead-out line | Match deriver |
| （mm） | （mm） | （A） | (N.m) | （g.cm²） | ||||
| 86J1865-450-01 | 2 | 65 | 14 | 5 | 3.4 | 950 | 4 | 2DM860 |
2Phase Nema34 stepper motor 86J1865-450 Mechanical Dimensions

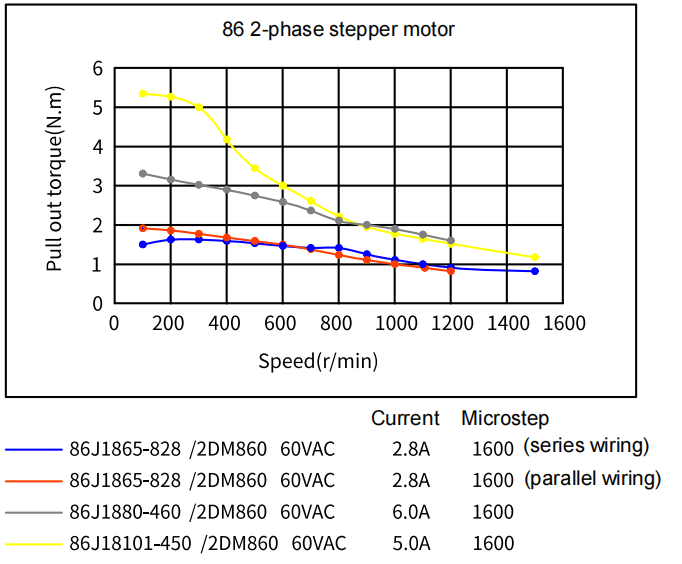

2Phase Nema34 cnc stepper motor 86J1865-450 Torque Diagram
In CNC systems, stepper motors work in conjunction with CNC controllers and software to execute precise movements, allowing for the creation of intricate parts and prototypes. While they are commonly used, it’s important to choose the right stepper motor for your specific CNC application to ensure optimal performance and accuracy.
