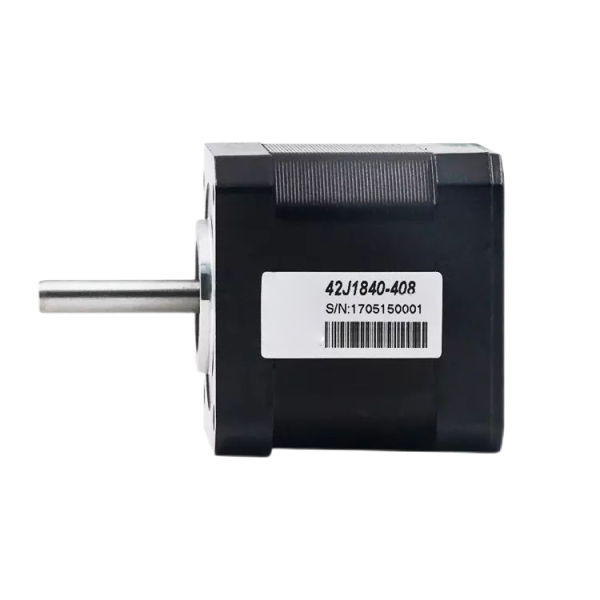

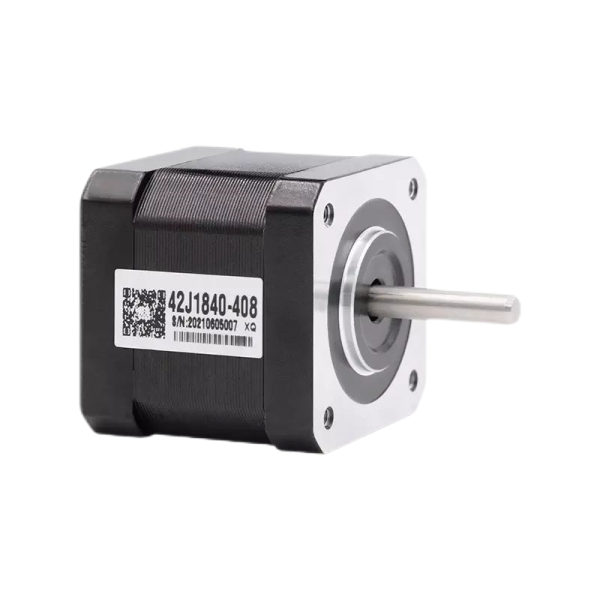

Nema 17 motor 2Phase 42J1840-408
42J1840-408 2Phase Digital Hybrid nema17 open loop stepper motors 3D Printer Application
- Description
- Inquiry
Description
2Phase Nema 17 motor stepper performance
- High-quality materials
- High reliability and precise positioning
- Excellent torque, high precision
- Low noise, low heat and low vibration
- Precise positioning, rotor, small air gap
2Phase Nema 17 stepper motor 42J1840-408 Specification
| Model | Phase | Length of Motor | Diameter of shaft | Rated current | Holding torque | Rotor Inertia | lead-out line | Match deriver |
| （mm） | （mm） | （A） | (N.m) | （g.cm²） | ||||
| 42J1840-408-01 | 2 | 40 | 5 | 0.8 | 0.4 | 57 | 4 | 2DM415 |
2Phase Nema17 stepper motor 42J1840-408 Mechanical Dimensions
42J1840-408-01 （Please click )
2Phase Nema17 stepper motor 42J1840-408 Torque Diagram
A Nema 17 motor is an actuator that converts electrical pulses into angular displacement. In layman’s terms: when the stepper driver receives a pulse signal, it drives the stepper motor to rotate a fixed angle (and step angle) in the set direction. You can control the angular displacement by controlling the number of pulses, so as to achieve the purpose of accurate positioning; at the same time, you can control the speed and acceleration of the motor rotation by controlling the pulse frequency, so as to achieve the purpose of speed regulation.
Stepper motor are widely used in various applications where precise control of position and rotation is required, such as 3D printing, CNC machining, robotics, and automation systems. They are favored for their simplicity and reliability in controlling motion, especially when high torque and accuracy are needed.
