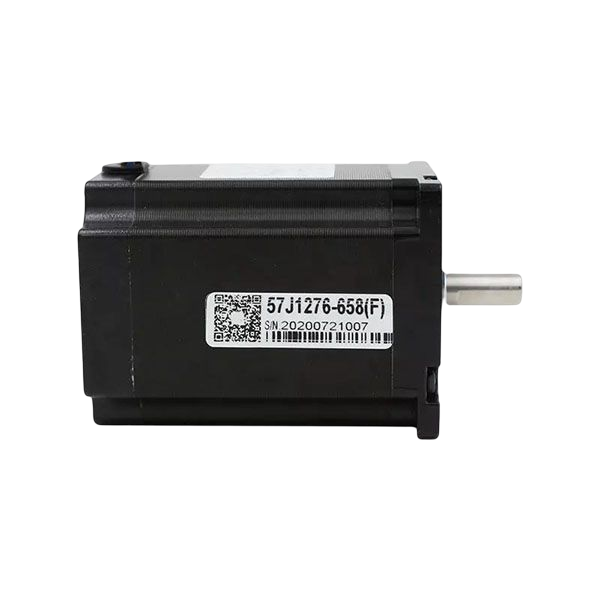

electric stepper motor Nema23 57J1276-658
57J1276-658 Nema23 1.2deg 3 phase 5.8A electric stepper motor for CNC machine parts
- Description
- Inquiry
Description
Introduction to electric stepper motor
A 3-phase stepper motor is a type of electric motor used for precise control of angular position. It’s called a “3-phase” stepper motor because it has three separate windings that are energized in a specific sequence to make the motor move in discrete steps. Stepper motors are commonly used in various applications, including CNC machines, 3D printers, robotics, and more, where precise control of rotation or position is required.
3Phase Nema23 stepper motor performance
- High-quality materials
- High reliability and precise positioning
- Excellent torque, high precision
- Low noise, low heat and low vibration
- Precise positioning, rotor, small air gap
3Phase Nema23 stepper motor 57J1276-658 Specification
| Model | Phase | Microstep | Length of motor | Motor shaft diamete | Rated current | Holding torque | Rotor inertia | Lead-out line | Match driver |
| （deg） | （mm） | （mm） | （A） | (N.m) | （g.cm²） | ||||
| 57J1276-658(F) | 3 | 1.2 | 76 | 8 | 5.8 | 1.5 | 480 | 6 | 3DM783 |
3Phase Nema23 electric stepper motor 57J1276-658 Mechanical Dimensions

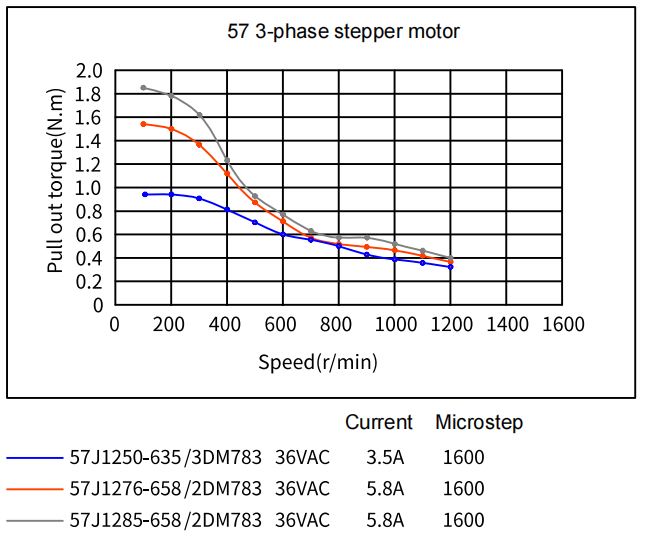

3Phase Nema23 stepper motor 57J1276-658 Torque Diagram
In summary, electric stepper motors are versatile devices used for precise angular control in various industrial and automation applications. They offer advantages like high reliability, simplicity of control, and the ability to hold a position without feedback systems, making them a popular choice for many motion control applications.
