Introduction to best stepper driver
DM series products of digital stepper driver adopt 32-bit DSP processor, which can drive 42-130 full series of two-phase and three-phase stepper motors. For different motors, the optimal control parameters can be automatically generated to maximize the performance of the motor, so that the motor can achieve low vibration, low heat generation and stable low-speed operation.
3Phase stepper driver performance
- Medium and high speed torque compensation;
- Current vector control, high efficiency;
- Built-in acceleration and deceleration control to improve the smoothness of start and stop;
- Single and double pulse control mode can be selected;
- Motor running position memory;
- Input signal differential optocoupler isolation, compatible with 5-24V;
- Customizable microstep;
- Overcurrent protection, overvoltage protection;
- Automatic detection, flexible selection of pulse edge counting method;
- Green light means running, red light means protection or offline.

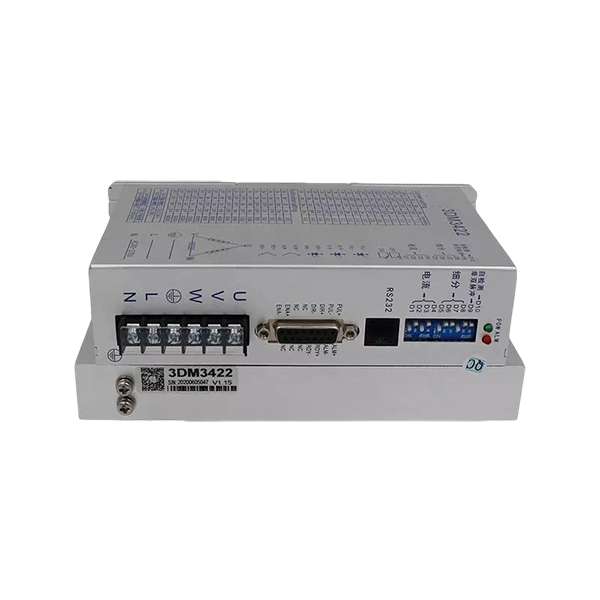

3Phase cnc driver 3DM3422 Specification
| Model | Phase | Micro step | Rated voltage | Output current | Dimension | Match motor |
| （A） | （mm） | |||||
| 3DM3422 | 3 | 2~3000 | AC(80V~240V) | 1.2~4.0 | 178.3×108.2×67.9 | 86 |
3Phase stepper driver 3DM3422 Mechanical Dimens
A stepper driver controls stepper motor movement. It converts electrical signals into precise pulses. Each pulse corresponds to a motor step. You control direction and speed with pulse timing. Modern drivers support microstepping for smoother movement. They regulate current to prevent motor damage. Stepper drivers ensure accurate positioning. Some have communication interfaces for easy control. Protection features safeguard the motor and driver. Consider motor specs and load requirements when choosing a driver.
