DM860H industrial stepper motor driver
2 DM860h Digital 24 V dc cnc stepper motor driver kit with CE certificate
- Description
- Inquiry
Description
Introduction to stepper driver DM860H
The DM860H is a stepper motor driver, specifically a type of microstepping driver. Stepper motor drivers like the DM860H are used to control the movement of stepper motors, which are commonly used in various applications, including 3D printers, CNC machines, robotics, and more.
2Phase stepper driver DM860H performance
- Medium and high speed torque compensation;
- Current vector control, high efficiency;
- Built-in acceleration and deceleration control to improve the smoothness of start and stop;
- Single and double pulse control mode can be selected;
- Motor running position memory;
- Input signal differential optocoupler isolation, compatible with 5-24V;
- Customizable microstep;
- Overcurrent protection, overvoltage protection;
- Automatic detection, flexible selection of pulse edge counting method;
- Green light means running, red light means protection or offline.

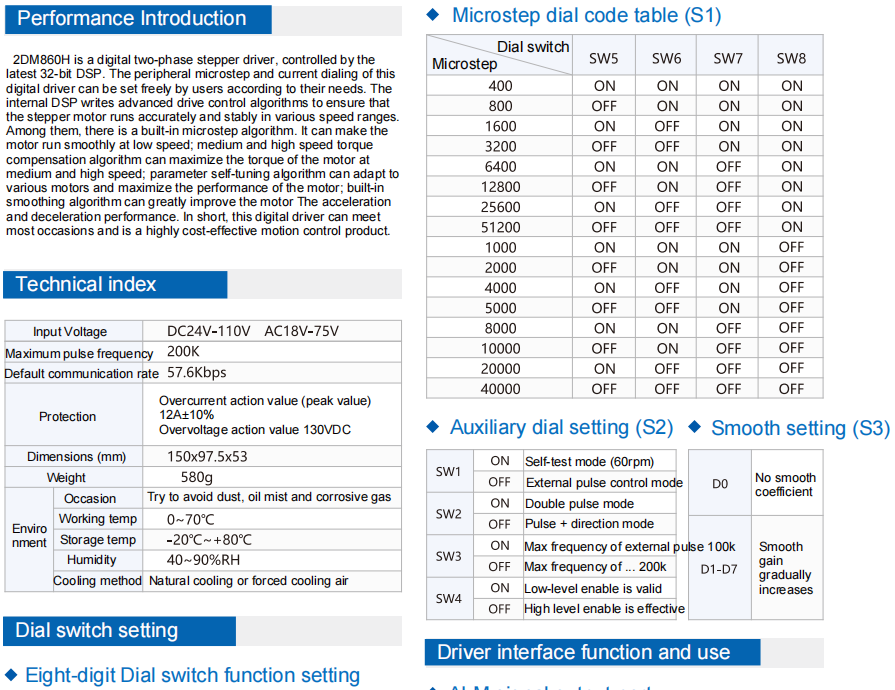

2Phase stepper driver DM860H Specification
| Model | Phase | Micro step | Rated voltage | Output current | Dimension | Match motor |
| （A） | （mm） | |||||
| 2 DM860h | 2 | 2~256,5~200 | DC(24~110) AC(18~75) | 1.8~7.0 | 150×97.5×52.6 | 57/86/110 |
2Phase stepper driver 2 DM860h Mechanical Dimens
A stepper driver, also known as a stepper motor driver or stepper motor controller, is an electronic device or module used to control the motion of a stepper motor. Stepper motors are commonly used in various applications that require precise and controlled rotational or linear motion, such as 3D printers, CNC machines, robotics, and automated systems. The stepper driver plays a crucial role in converting electrical signals into precise mechanical movements by controlling the current supplied to the motor windings.
When selecting a stepper driver for a particular application, it’s essential to consider factors such as motor voltage, current requirements, microstepping capability, and communication interface compatibility. The choice of driver can significantly impact the overall performance and precision of the stepper motor system.
