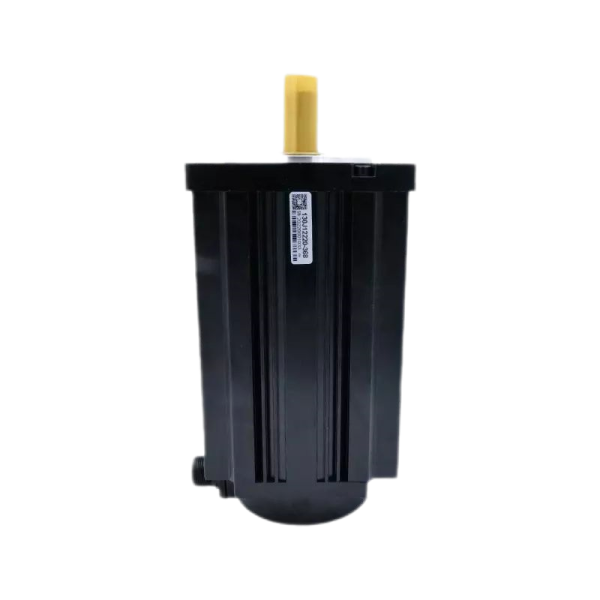

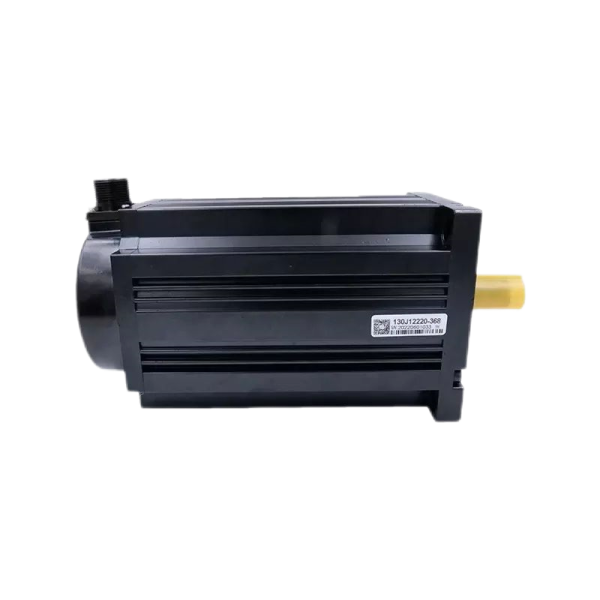

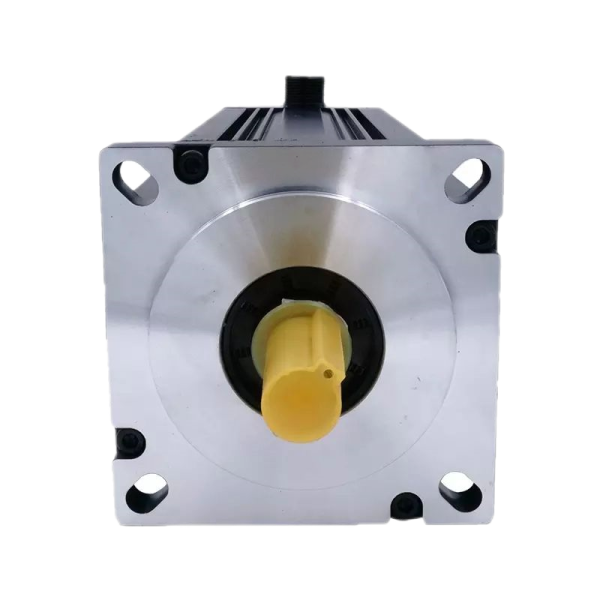

stepper motor step Nema52 130J12220-368
130J12220-368 3Phase 28N.m stepper motor sizing Hybrid Matched 3D printer
- Description
- Inquiry
Description
Introduction to stepper motor step
A stepper motor is an actuator that converts electrical pulses into angular displacement. In layman’s terms: when the stepper driver receives a pulse signal, it drives the stepper motor to rotate a fixed angle (and step angle) in the set direction. You can control the angular displacement by controlling the number of pulses, so as to achieve the purpose of accurate positioning; at the same time, you can control the speed and acceleration of the motor rotation by controlling the pulse frequency, so as to achieve the purpose of speed regulation.
3Phase Nema52 stepper motor performance
- High-quality materials
- High reliability and precise positioning
- Excellent torque, high precision
- Low noise, low heat and low vibration
- Precise positioning, rotor, small air gap
3Phase Nema52 stepper motor step 130J12220-368 Specification
| Model | Phase | Microstep | Length of motor | Motor shaft diamete | Rated current | Holding torque | Rotor inertia | Lead-out line | Match driver |
| （deg） | （mm） | （mm） | （A） | (N.m) | （g.cm²） | ||||
| 130J12220-368 | 3 | 1.2 | 236 | 19 | 6.8 | 28 | 33970 | 3 | 3DM2080 |
3Phase Nema52 stepper motor 130J12220-368 Mechanical Dimensions
3Phase Nema52 stepper motor 130J12220-368 Torque Diagram
In summary, 3-phase stepper motors are versatile devices used for precise angular control in various industrial and automation applications. They offer advantages like high reliability, simplicity of control, and the ability to hold a position without feedback systems, making them a popular choice for many motion control applications.
