Description

3Phase Nema34 Closed Loop stepper motor performance

• Using high-quality raw materials and high-precision permanent magnet silicon steel sheets
• Equipped with 1000-line/2500-line high-precision encoder
• Frame sizes are from NEMA 17 to 52
• Overcomes the lost-step problem of open-loop stepper motor, and significantly improves the high-speed performance of the motor and reduces the motor
• High efficiency, low vibration, and continuous operation with the security of closed loop performance and without hunting or gain tuning
• Equipped with brake type, waterproof type and other categories
• Including pulse direction type, intelligent type, bus type (CAN, Ethercat) and other categories

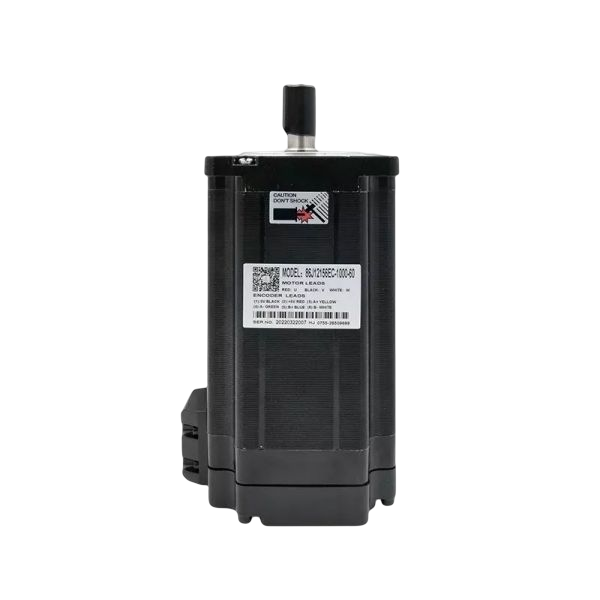

3Phase closed loop nema 34 motor 86J12156EC-1000-60 Specification

3Phase closed loop nema 34 motor 86J12156EC-1000-60 Mechanical Dimensions

86J12156EC-1000-60(Please click)

3Phase Nema34 Closed loop stepper motor 86J12156EC-1000-60 Torque Diagram

North Intelligence Closed loop stepper drive products adopt the latest motor-specific DSP chip and closed-loop control technology to overcome the step loss problem of open-loop stepping motors, which can not only improve high-speed performance and acceleration and deceleration performance, but also effectively reduce motor heat and reduce motor vibration.

A servo motor closed-loop system is a control system that uses feedback to continuously adjust the position, speed, or torque of a servo motor to maintain a desired setpoint or reference value. Closed-loop control is also known as feedback control, and it is commonly used in various industrial and automation applications where precision and accuracy are crucial.

Closed loop stepper motors find applications in various industries, including:

• CNC machines and milling equipment
• 3D printers
• Robotics
• Automated manufacturing systems
• Medical devices
• Laboratory automation
• Camera systems and gimbals
