stepper motor shaft 19 Nema42 110J12161-360

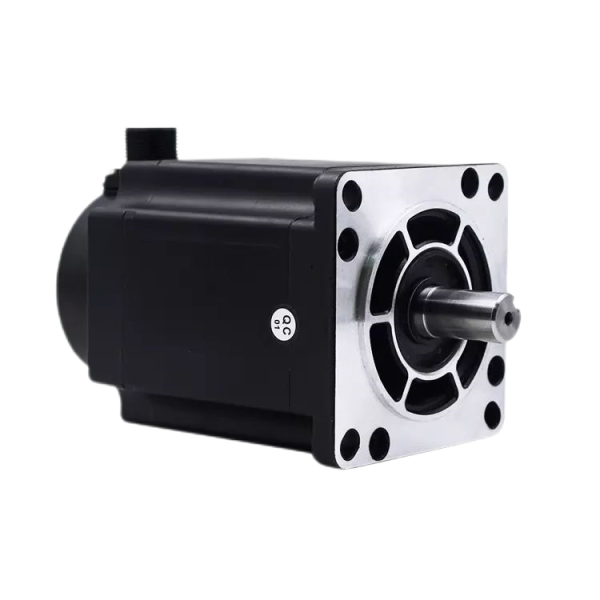

110J12161-360 high precision 3phase Nema42 12N.m stepper motor shaft 19mm
- Description
- Inquiry
Description
Introduction to 3 phase stepper motor shaft
A 3-phase stepper motor is a type of electric motor used for precise control of angular position. It’s called a “3-phase” stepper motor because it has three separate windings that are energized in a specific sequence to make the motor move in discrete steps. Stepper motors are commonly used in various applications, including CNC machines, 3D printers, robotics, and more, where precise control of rotation or position is required.
3Phase Nema42 stepper motor performance
- High-quality materials
- High reliability and precise positioning
- Excellent torque, high precision
- Low noise, low heat and low vibration
- Precise positioning, rotor, small air gap
3Phase Nema42 stepper motor shaft 19mm 110J12161-360 Specification
| Model | Phase | Microstep | Length of motor | Motor shaft diamete | Rated current | Holding torque | Rotor inertia | Lead-out line | Match driver |
| （deg） | （mm） | （mm） | （A） | (N.m) | （g.cm²） | ||||
| 110J12161-360 | 3 | 1.2 | 160 | 19 | 6 | 12 | 11900 | 3 | 3DM2080 |
3Phase Nema42 stepper motor 110J12161-360 Mechanical Dimensions

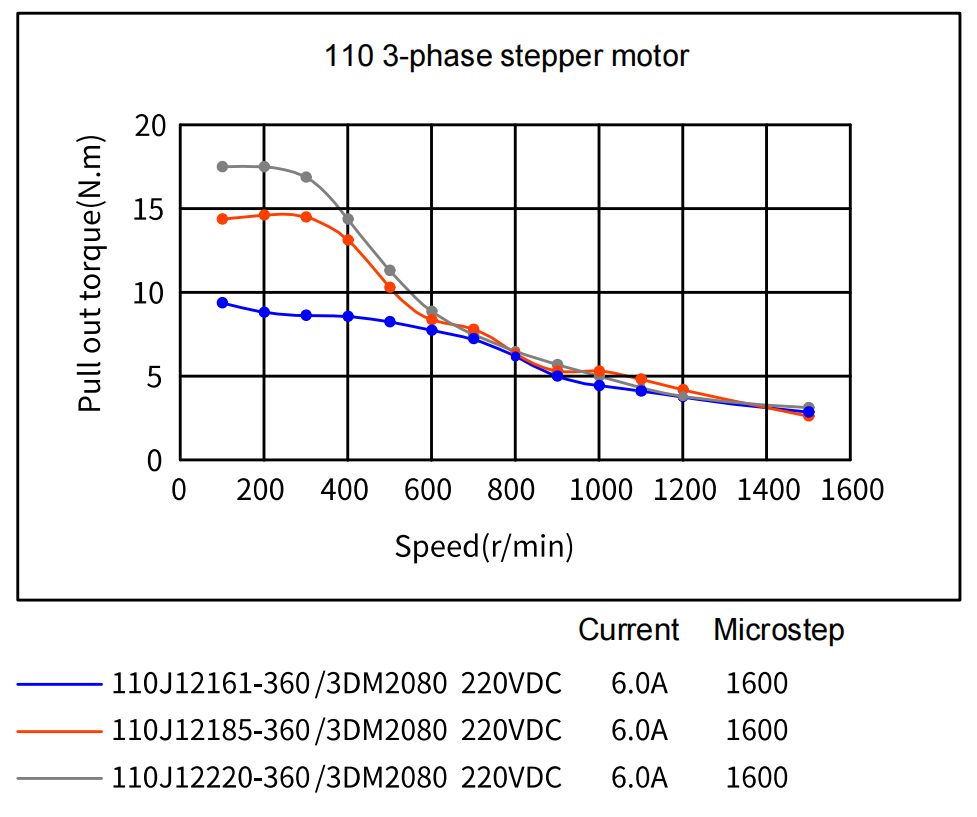

3Phase Nema42 stepper motor 110J12161-360 Torque Diagram
In summary, 3-phase stepper motors are versatile devices used for precise angular control in various industrial and automation applications. They offer advantages like high reliability, simplicity of control, and the ability to hold a position without feedback systems, making them a popular choice for many motion control applications.
