Description

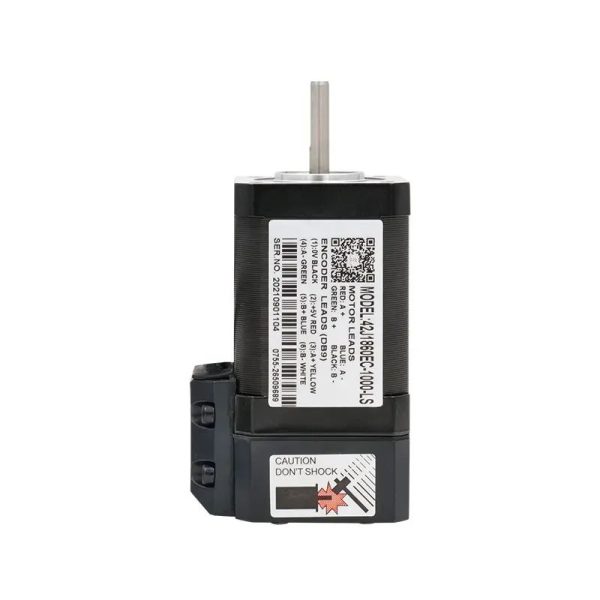

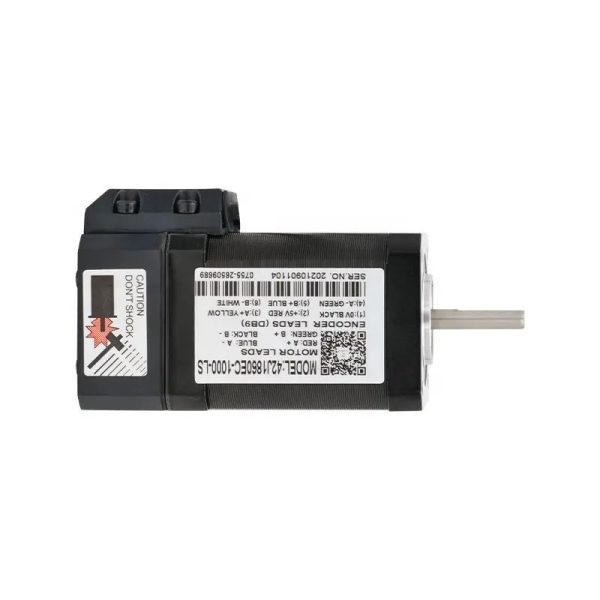

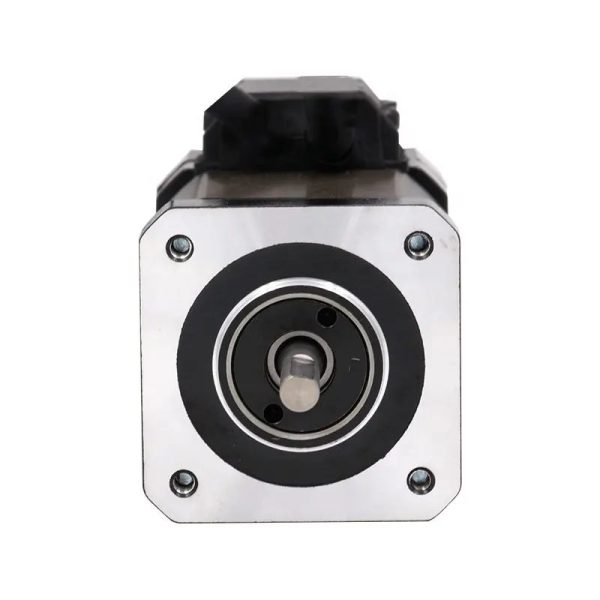

2Phase Nema17 Closed Loop stepper motor performance

• Using high-quality raw materials and high-precision permanent magnet silicon steel sheets
• Equipped with 1000-line/2500-line high-precision encoder
• Frame sizes are from NEMA 17 to 52
• Overcomes the lost-step problem of open-loop stepper motor, and significantly improves the high-speed performance of the motor and reduces the motor
• High efficiency, low vibration, and continuous operation with the security of closed loop performance and without hunting or gain tuning
• Equipped with brake type, waterproof type and other categories
• Including pulse direction type, intelligent type, bus type (CAN, Ethercat) and other categories

2Phase Nema17 Closed Loop stepper moto 42J1860EC-1000-LS-SCG Specification

2Phase Nema17 servo motor stepper motor 42J1860EC-1000-LS-SCG Mechanical Dimensions

42J1860EC-1000-LS-SCG(Please click)

2Phase Nema17 servo motor stepper motor 42J1860EC-1000-LS-SCG Torque Diagram

North Intelligence Closed loop stepper drive products adopt the latest motor-specific DSP chip and closed-loop control technology to overcome the step loss problem of open-loop stepping motors, which can not only improve high-speed performance and acceleration and deceleration performance, but also effectively reduce motor heat and reduce motor vibration.

A servo motor closed-loop system is a control system that uses feedback to continuously adjust the position, speed, or torque of a servo motor to maintain a desired setpoint or reference value. Closed-loop control is also known as feedback control, and it is commonly used in various industrial and automation applications where precision and accuracy are crucial.

Closed-loop stepper motors find applications in various industries, including:

• CNC machines and milling equipment
• 3D printers
• Robotics
• Automated manufacturing systems
• Medical devices
• Laboratory automation
• Camera systems and gimbals
