motors with integrated controller IHSS57-36-20

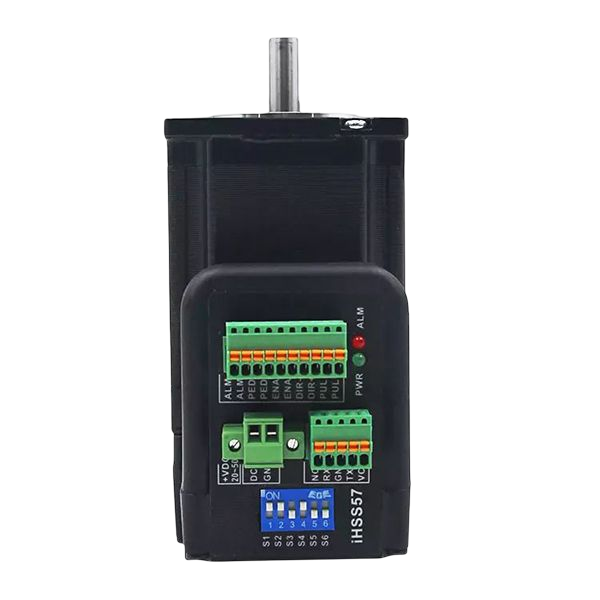

IHSS57-36-20 Nema23 2Nm DC36V Integrated Closed Loop Stepper motor with driver
- Description
- Inquiry
Description
Motors with integrated controller, often referred to as an integrated stepper motor driver or integrated stepper motor controller, is a device that combines a stepper motor and its associated driver or controller electronics into a single, compact unit. This integration simplifies the setup and control of stepper motors, making them easier to use in various applications.
Key features of motors with integrated controller include:
- Space Efficiency: They consolidate these components, saving space and reducing wiring complexity.
- Ease of Use: They are designed to be user-friendly.They often come with pre-configured settings and simplified control interfaces
- Reduced Wiring: Integrating the motor and driver eliminates the need for external connections between the two components.
- Higher Integration: Some of them go beyond combining the motor and driver and may include additional features
- Cost Savings: they often lead to cost savings in terms of reduced installation time, lower chances of errors, and decreased complexity.
- Customization: Many of them offer adjustable settings and control parameters, allowing users to fine-tune the motor’s performance to their specific needs.
- Never lose steps,low heat generation/high efficiency,smooth and precise,high-speed response,high torque/high speed.Motors with integrated controller
Naming rules
Specifications:
| Number of Phase | 2 | Rotor Inertia | 480g.cm² |
| Step Angle | 1.8° | Dielectric Strength | 500VDC |
| Step Angle Accuracy | ±0.09° | Insulation Resistance | 100MOHM (500VDC) |
| Rated Current/phase | 4A | Insulation Class (UL) | B |
| Resistance/phase | 0.37Ω±10% | Temperature Rise Max | 80K |
| Inductance/phase | 1.7MH±20% | Radial Play | Max 0.025mm (load 450g) |
| Holding Torque | 2Nm | Axial Play | Max 0.075mm (load 920g) |

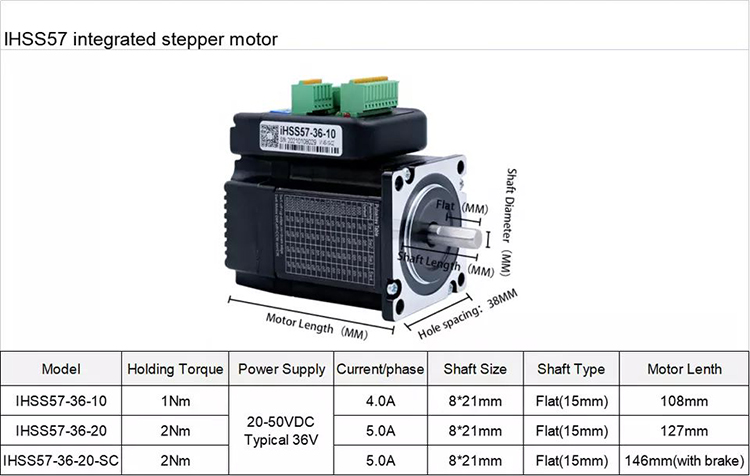

IHSS57-36-20 Mechanical Dimensions

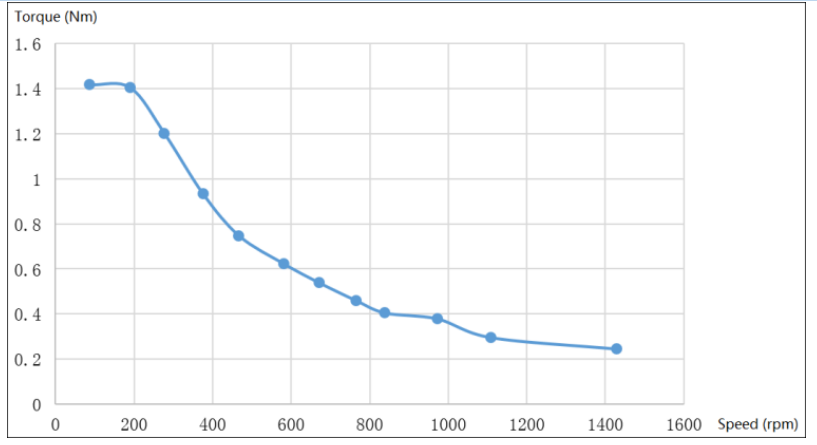

Torque cruve
Motors with integrated controller is commonly used in applications like 3D printers, CNC machines, robotics, and automation systems. These applications benefit from the space savings and simplified setup.It’s important to note that integrated stepper motors are available in various sizes and performance levels, so you should select the one that best fits your application requirements.
