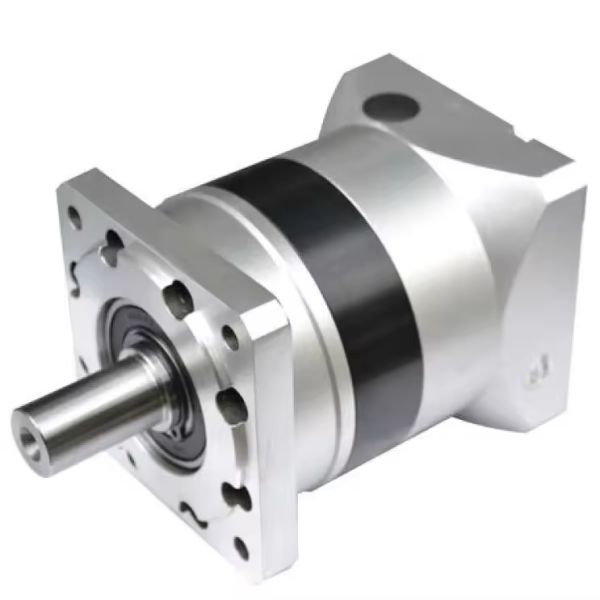

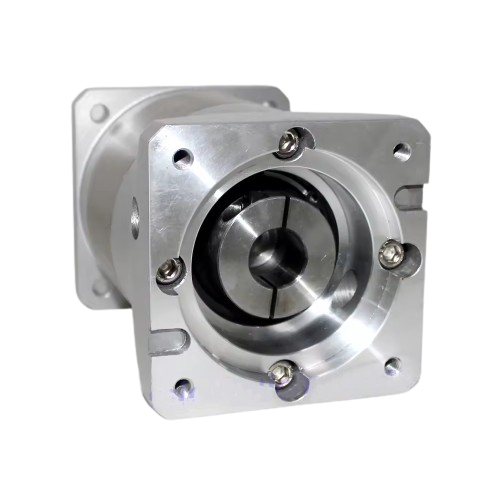

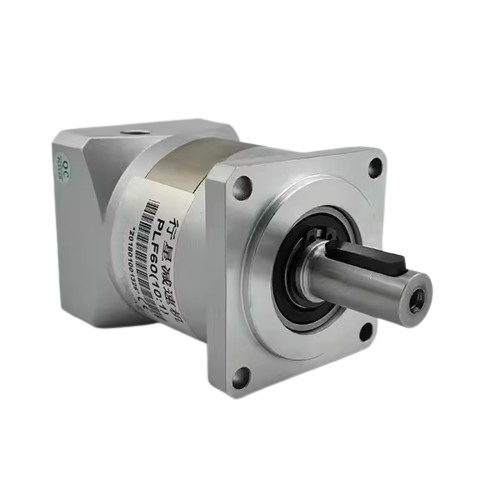

gearbox PLF60 for stepper and servo system
- Description
- Inquiry
Description
The PLF 60 series of precision planetary gearbox are special gears used to control how things move very precisely in machines. They’re like super-accurate gears that make sure machines move exactly as they’re supposed to. These reducers are small but powerful, and they work smoothly without making much noise. They’re commonly used in robots, machines that make things, and other fancy equipment where accuracy and reliability are really important.

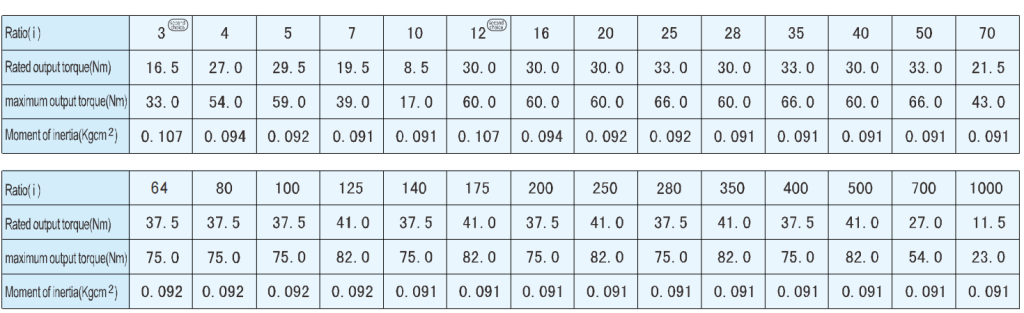

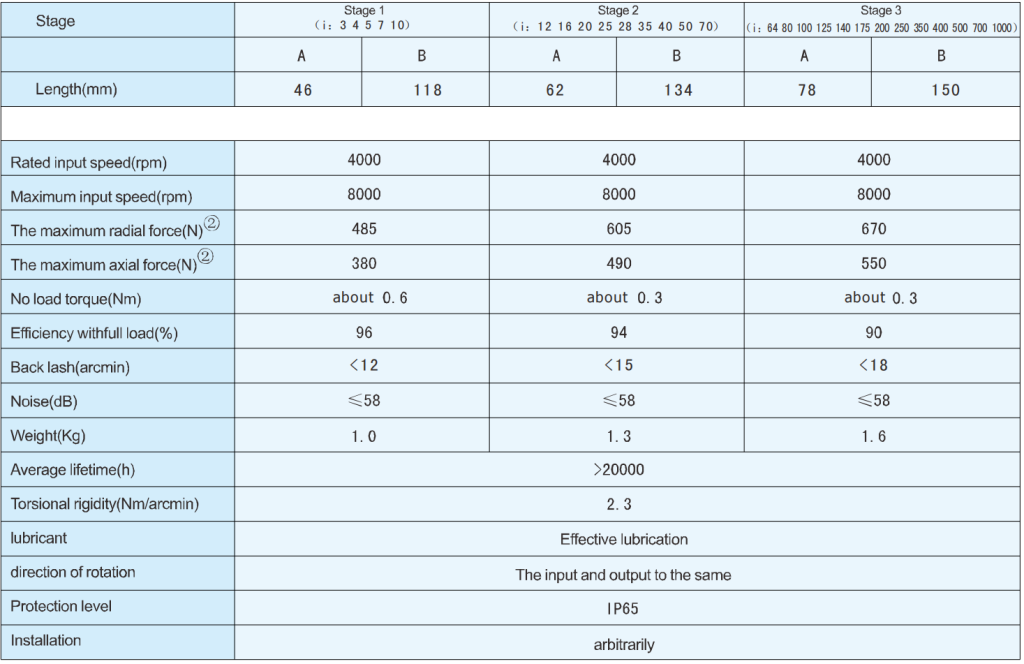

Gearbox Nema24 PLF60 Series Gearbox Specifications
| stage | single stage 1:3/1:4/1:5/1:7/l:10 | |
| Length (mm) | A | B |
| 46.0 | 118.0 | |
| Rated input speed(rpm) | 4000rpm | |
| Max input speed (rpm) | 8000rpm | |
| Max radial force(N) | 485 | |
| Max axial force(N) | 380 | |
| No load Turque (Nm) | 0.6 | |
| Full load efficiency(%) | 96% | |
| Return clearance(arcmin) | Precision backlash arcmin <8 |
Gearbox Nema24 PLF60 Series Gearbox Specifications
The selection of reducer should be considered the type of structure,the installation form,bearing working conditions,output speed,etc.To determine the sample size:the carrying capacity of reducer is in the rated speed,working less than 12 hours per day,every hourstarting number less than 10,it is smooth and shock free conditions.
Selecting the right reducer depends on the specific application and requirements. Here’s a general process to help you select a reducer:
- Understand the Requirements:
- Choose the Type of Reducer:
- Consider Efficiency and Backlash:
- Calculate Reduction Ratio:
- Evaluate Mounting and Integration:
- Consider Maintenance and Reliability:
- Cost Consideration:
- Consult Experts:
By following these steps and considering the specific requirements of your application, you can select a reducer that meets your needs in terms of performance, efficiency, reliability, and cost-effectiveness.
