Description

Ac servo drive are a critical component in many motion control systems, particularly in applications that require precision, accuracy, and high-performance control of electric motors. The characteristics of servo drive can vary depending on the specific application and the manufacturer.

Ac servo drive of key features and performance characteristics

1.JAND-R/RC/EC bus high-voltage ac servo driver product is RS485/CAN/EtherCAT bus high-voltage ac servo drive, which adopts standard Modbus-RTU, CANopen and EtherCAT (COE) communication protocols;
2.using advanced motor control dedicated DSP Chips, large-scale programmable gate arrays (FPGA) and IPM power modules realize full digital control of position, speed and torque through optimized PID control algorithms, with the advantages of high precision and fast response;
3.built-in key input and digital Tube display output, you can set slave station operating parameters such as slave station ID number, baud rate, running direction and display the current status of the driver;
4. it comes with 5 digital signal inputs for zero return reference, forward and reverse limit input and probe Function;
5. comes with 3 digital signal outputs for brake control signals, alarms and in-position signals;
6.comes with over-current, over-voltage, under-voltage and position tolerance protection functions;
7.RJ45 network communication connection port, convenient wiring, reducing system complexity degree;
8.simultaneously supports motors with 17-bit, 20-bit, and 23-bit high-precision absolute encoders to meet customers’ different performance requirements;
9.It is an extremely cost-effective industrial Ethernet bus motion control product.

Servo drive Specification

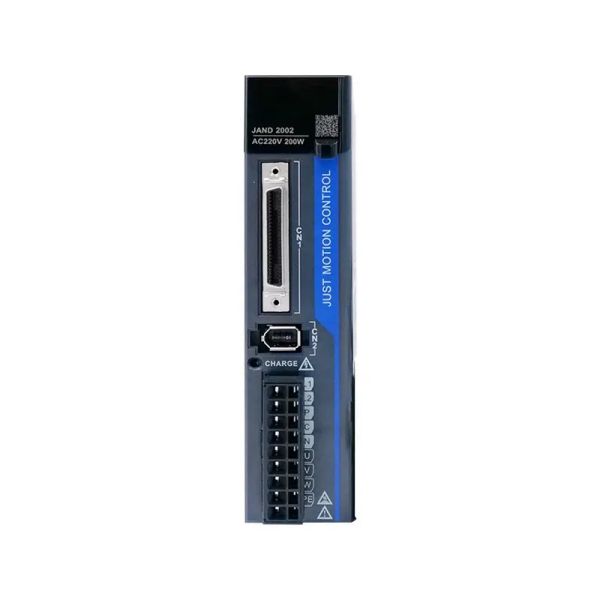

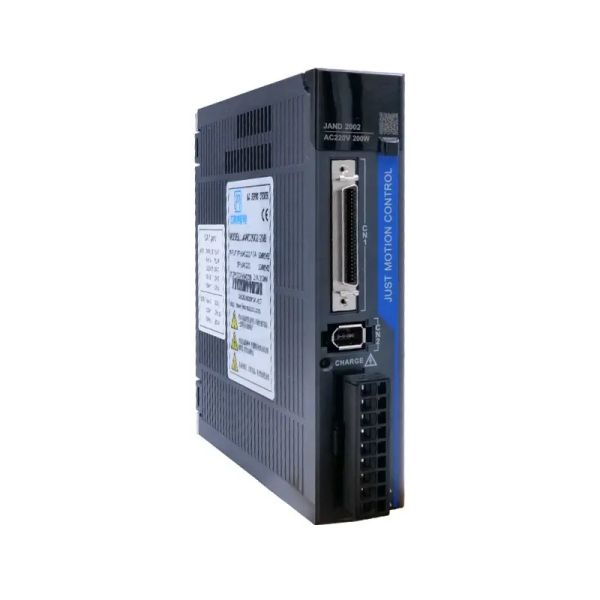

Servo drive JAND2002-20B Mechanical Dimensions

JAND2002(Please click)

Naming rules of ac servo drive

Ac servo drive wiring diagram
